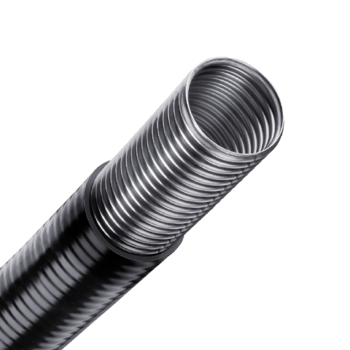

PETREX-CNT – flexible and singled-walled for fuels

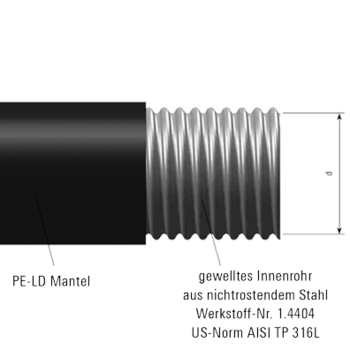

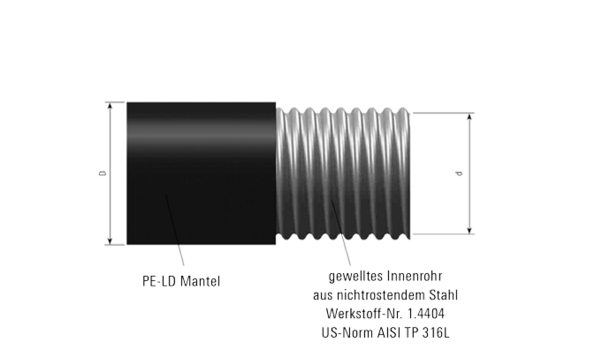

Flexible, single-walled pipe system with stainless steel inner pipe used as supply line for fuels in filling station construction

Properties

Operating pressure: PN 6
Dimensions: DN 20–100
Carrier pipe: Stainless steel
Protective casing: LDPE

Applications

PETREX-CNT was developed specifically for transporting flammable and water-polluting liquids underground to filling stations.



Used as suction pipes, pressure pipes, filling pipes, etc.

Type Nominal diameter Inner Diameter External diameter Volume Inner pipe Min. bending radius Weight

  DN Inch mm mm l/m m kg/m
CNT 30/39 25 1 30 39 0.80 0.2 0.56
CNT 48/60 40 1 1/2 48 60 2.00 0.3 1.37
CNT 60/71 50 2 60 71 3.00 0.4 1.75
CNT 98/120 80 3 98 120 8.40 0.8 4.5

Downloads

Additional

Product Training

Product Training

We offer theory and practical seminars as a service in our training center for anyone who wants to work more economically in pipeline or tank system construction.

Connectors

Connectors

PETREX-CNT connections are optionally available with a split round flange or threaded end for connection to screwed fittings or similar. With the classic connection technology, assembly is carried out flamelessly, i.e. without welding or brazing by means of a press fitting.
