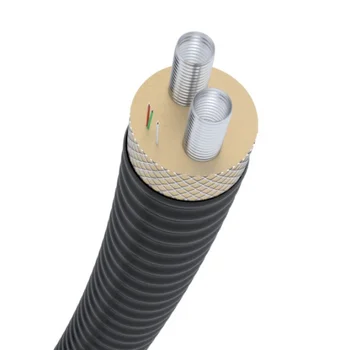

The CASAFLEX DUO, featuring two corrugated stainless steel inner pipes, is a thermally insulated, highly flexible, and continuous piping solution engineered for high-temperature and high-pressure applications. It is suitable for building infeed, supply lines in district and local energy networks, and steam condensate lines.
Max. operating temperature: 150 °C (302 °F)
Peak temperature: up to 180 °C* (356 °F)*
Operating pressure: 16 / 25 bar (232 / 362 psi)
Material: Spiral-corrugated stainless steel with premium PIR thermal insulation
System features: self-compensating, self-ventilating, self-cleaning & monitorable
*During the guaranteed service life of 30 years, the maximum continuous operating temperature of 150 °C (302 °F) up to the peak temperature of 180 °C (356 °F) may be exceeded twice a year for a period of one hour. After this, the maximum continuous operating temperature of 150 °C (302 °F) must be adjusted again.
Applications: Building infeed and supply lines in district and local energy networks or steam condensate systems.
We look forward to your inquiry.
| Type | Nominal diameter | Inner pipe | Outer casing | Min. bending radius* | |
| d x d1 x 1 | D | ||||
| DN | Inch | mm | mm | m | |
| CFL 22+22/111 | 20 | 3/4 | 25x22x0.3 | 111 | 1.1 |
| CFL 30+30/126 | 25 | 1 | 34x30x0.3 | 126 | 1.4 |
| CFL 39+39/142 | 32 | 1 1/4 | 44x39x0.4 | 142 | 1.5 |
| CFL 48+48/162 | 40 | 1 1/2 | 55x48x0.5 | 162 | 1.8 |
| CFL 60+60/182* | 50 | 2 | 66x60x0.5 | 182 | 2.0 |
