More pressure. More efficiency. More future.
With ARMOPEX, we are expanding our portfolio of district heating pipes to include a reinforced, flexible piping system for modern local and district heating networks. This new, pre-insulated system was specifically developed for medium-pressure applications and closes the gap between classic PEX lines and cost-intensive metallic piping systems.

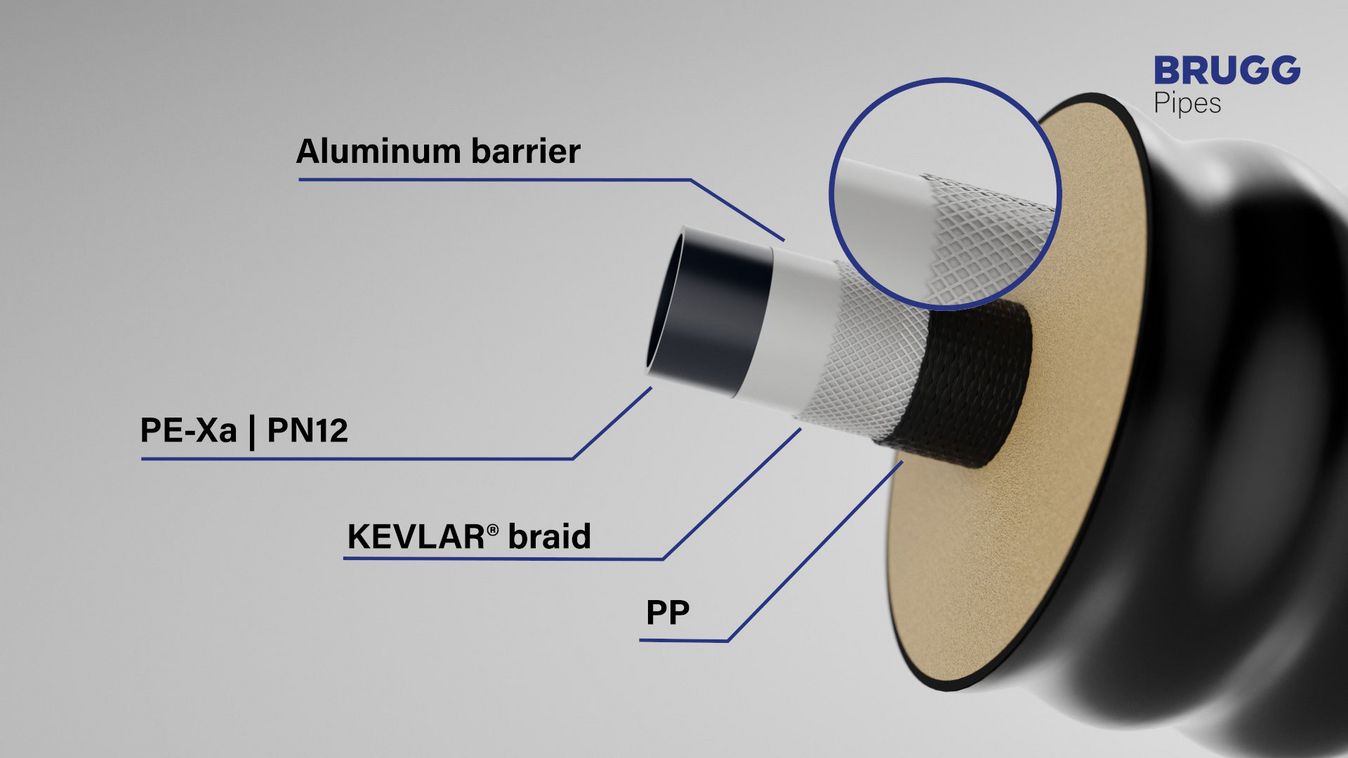

ARMOPEX combines high pressure and temperature resistance with very good energy efficiency. The aramid-reinforced PE-Xa carrier pipe is designed for operating pressures of up to 12 bar (PN12) and temperatures of up to 239 °F (115 °C), in accordance with temperature profile TR4 of TS 17889.
The high-quality PUR thermal insulation, with a very low thermal conductivity of λ = 0.138 Btu·in/(h·ft²·°F) (at 122 °F), helps reduce heat loss and supports the energy-efficient operation of heating networks.
The aramid-reinforced PE-Xa carrier pipe and robust outer casing provide high operational reliability and durability. Supplied in long coils, ARMOPEX also allows for easy installation with fewer joints. ARMOPEX is designed for a service life of over 50 years. This makes the system particularly suitable for long pipe runs and the requirements of modern and future heating networks.
ARMOPEX stands for Swiss engineering, highest quality, and future-proofing – developed for the increasing demands of modern energy infrastructures.
You can find more information on the ARMOPEX product page
